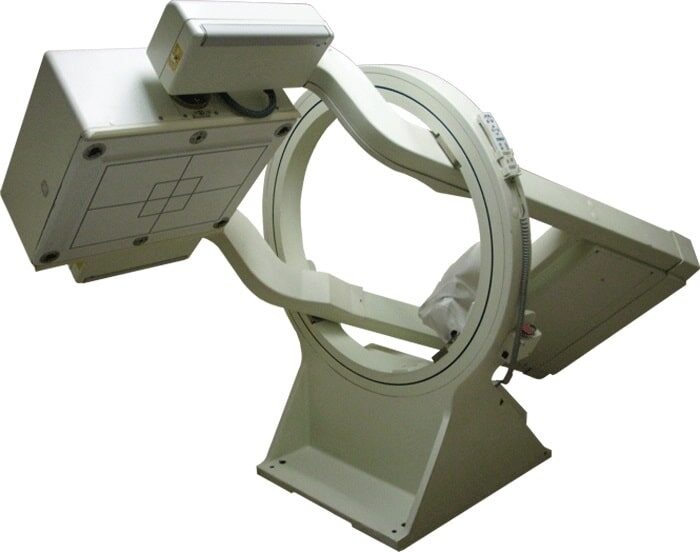

GE - Millennium MPR
- نوع و تعداد دتکتور:Single-Head
The Millennium MPR is a multi-purpose rectangular, single-head nuclear medicine camera capable of handling high volumes of general purpose and cardiac imaging. The rectangular configuration allows for simple whole body imaging. Features • Digital CSE detectors for better image quality • Programmable body contouring • 3-Axis universal imaging table • Rectangular 520mm x 370mm FOV Available Options • Convenience Devices • Extended Warranties • Fully Equipped Hot Lab • New Cardiac Gate • Patient Comfort Devices • Printers • Professional Accreditation Support Services (PASS) • Software Add-Ons • Uninterruptible Power Supply
اطلاعات محصول
درباره GE - Millennium MPR
GE Millennium MPR, MPS & MPG The GE Millennium MPR and MPS cameras provide a single detector imaging system at an affordable price point. The MPR should be utilized where whole body imaging is critical. If whole body is not needed or spot views are sufficient, the MPS can be employed to minimize floor space. The GE Millennium MPR requires a 15′ x 15′ minimum room, while the MPS only requires 10’ x 15’-9” (more space recommended in both cases). Maximum Patient Weight: 400 Pounds Available Options: Patient Comfort Accessories, QGS/QPS, Emory Toolbox, 4DMSPECT, UltraSPECT Half-Time/Half-Dose Reduction Software, Various Collimators, UPS, Extended Warranty
Call us today at +1 800.704.7498 or email us at sales@qdillc.com with your equipment requirements and we will create a cost effective solution, without sacrificing quality.
MODEL Millennium MPR GE SPECT Yes OPTIONAL ATTACHMENTS Mobile/removable table; table extension; snap-on IV/catheter pole; headholder; R-Made armrest; scintimammography extension SYSTEM SPECIFICATIONS 1 single-crystal detector POWER NEEDED 100/120 VAC, 50/60 Hz, 1 kVA DIMENSIONS 112 x 409 x 145 (44.1 x 161 x 57.1) WEIGHT, kg 1,484 (3,272) PROCESSOR DATA INPUT At camera station Data transfer TCP/IP, Interfile Dicom 3.0 Yes Display matrix 1281 x 1024 Storage 40 GB disk/ 8 GB usable HEAT LOADING, BTU/hr 4000 STABILITY 3 SYSTEM FUNCTIONS Ufov, cm 51 x 36 (20.1 x 14.1) Max. count,cps 270000 Dead time, μsec 0.7 Energy range, kev 55-540 Intrinsic spatial resolution, mm Fwhm, ufov 3.9 Fwtm, ufov 7.6 Extrinsic spatial resolution Fwhm at 10 cm, mm 10.2 (LEGP) System sensitivity, leap, counts/min/uci 262 (LEGP) Intrinsic energy resolution, fwhm, 140 kev 0.00% Intrinsic spatial linearity, mm Integral ufov 0.5 Differential ufov 0.2 Intrinsic uniformity, uncorrected Integral ufov 0.00% Differential ufov 0.00% DETECTOR/YOKE MOVEMENT Whole-body scan Rate, cm/min Maximum 200 cm/min Mode Single pass Area, cm 51 x 190 Contouring Learn mode Yoke rotation, deg +/-270 Radius, cm 1-32 (0.4-12.5) Detector turning, deg -20 to +90 You may also be interested in the following Manufacturer Specifications: • Millennium MG Manufacturer Specification • DST-XLi Manufacturer Specification • Maxxus Manufacturer Specification Disclaimer Information on this page may be partial or incomplete and may contain mistakes or inaccurate information. MedWOW disclaims any obligation, responsibility or liability which concerns or relates to any information on this page.
