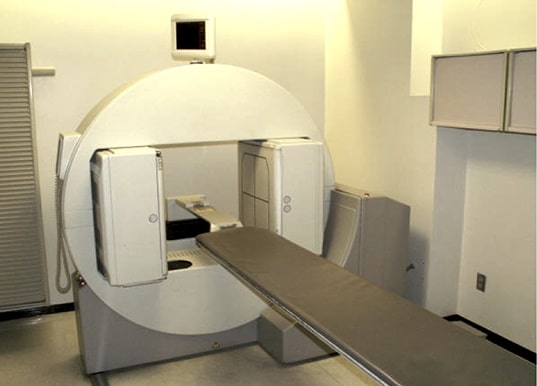

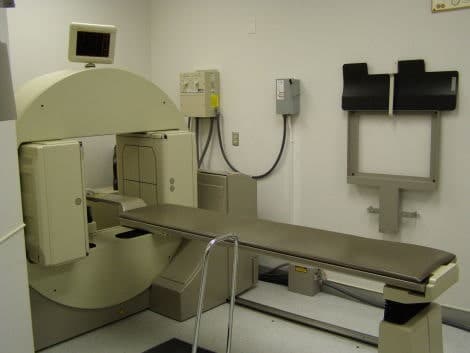

Picker- PRISM 2000

MODEL PRISM 2000 XP SPECT (PROCESSOR) Standard/coincidence OPTIONAL ATTACHMENTS (SHOCK-WAVE GENERATOR) Multiformat camera, color printers, optical disk, extra display stations, CardioFAN system, DICOM, FUSION, STEP, CEDARS QGS, PCD positron imaging SYSTEM SPECIFICATIONS 2 single-crystal detectors dedicated camera SYSTEM FUNCTIONS Ufov, cm (in) (SYSTEM FUNCTIONS) 51x 38 (20 x 15) Max. count,cps (SYSTEM FUNCTIONS) 435000 Dead time, μsec (SYSTEM FUNCTIONS) 1.6high, 2.6 normal Energy range, kev (SYSTEM FUNCTIONS) 50-511 Intrinsic spatial resolution, mm Fwhm at 10 cm, mm (Extrinsic spatial resolution (leap)) 8.3LEHR Fwtm at 10 cm, mm (Extrinsic spatial resolution (leap)) 14.5LEHR System sensitivity, LEAP, counts/min/μCi (Extrinsic spatial resolution (LEAP)) 245thin, 275 thick † Intrinsic energy resolution, fwhm, 140 kev (Extrinsic spatial resolution (leap)) 0.10% Intrinsic uniformity, uncorrected Integral ufov (Intrinsic spatial linearity, mm) ±3.5%, corrected Differential ufov (Intrinsic spatial linearity, mm) ±2.5%, corrected POWER NEEDED 200/208/220/240 VAC, 50/60 Hz, 30 A, single phase DIMENSIONS (HXWXD), CM (IN) (DETECTION PROCESS, HR) 203x 298 x 192 (80x 117.3 x 75.5) WEIGHT, kg (lb) (DISPLAY) 1,581(3,485) DETECTOR CHARACTERISTICS Crystal dimensions, cm (in) (DETECTOR CHARACTERISTICS) 47x 59 (18.5x 23) Thickness, mm (in) (DETECTOR CHARACTERISTICS) (3/8).19(3/4) Number of pmts (DETECTOR CHARACTERISTICS) (3").6(2") Size, cm (in) (MAXIMUM OBJECT) (3).5(2) Digital detectors (DETECTOR CHARACTERISTICS) Multiple high- precision ADCs DETECTOR/YOKE MOVEMENT Whole-body scan Rate, cm/min (Whole-body scan) Above 200 cm/min3-300 Mode (IMAGING SYSTEM) Single pass Area, cm (Whole-body scan) 51x 198 Contouring (Whole-body scan) Manual, automatic (PRISMpath) Yoke rotation, deg (Whole-body scan) 370 Radius, cm (in) (Whole-body scan) 9.8-31(3.9-12.2) Detector turning, deg (Whole-body scan) -1to +91 Clearance Maximum, cm (in) (Clearance) 62(24.3) Minimum, cm (in) (Clearance) 20(7.7) PROCESSOR DATA INPUT At camera stationOdyssey FX 380, FX 451, FX 729 Processing (PROCESSOR) DEC Alpha AXP Data transfer (PROCESSOR) Fiberoptic, Ethernet Display matrix (IMAGE DISPLAY) 1024x 1280 Storage 2GB standard, 9 GB optional; 2.3 GB optical disk option; 1.2GB tape standard HEAT LOADING, BTU/hr (gantry only) (PROCESSOR) 5,800 maximum, 4,400 standby TOTAL BODY Standard OPERATING PANEL Persistence scope (OPERATING PANEL) Yes Zoom regulation (OPERATING PANEL) Yes Ratemeter Yes Scaler (OPERATING PANEL) Yes Time display (OPERATING PANEL) Yes Energy selection Automatic (CALIBRATION) Yes Manual (CALIBRATION) Yes Auto peaking (Energy selection) Yes Image turning control (Energy selection) Yes Pha window capacity (Energy selection) 8peaks Window selection Automatic (CALIBRATION) Yes Manual (CALIBRATION) Yes Auto uniformity correction (Window selection) Yes Nonuniform attenuation correction method (Window selection) STEP 2000 option, nonuniform Collimators Dynamic, LEGP, HR, UHR, HRFAN, UHRFAN, ME, HE, pinhole, CardioFAN FDG-SPECT Coincidence upgrade HUMIDITY 45-80% noncondensing COINCIDENCE IMAGING Optional upgrade CLINICAL USES General-purpose WHERE MARKETED Worldwide
