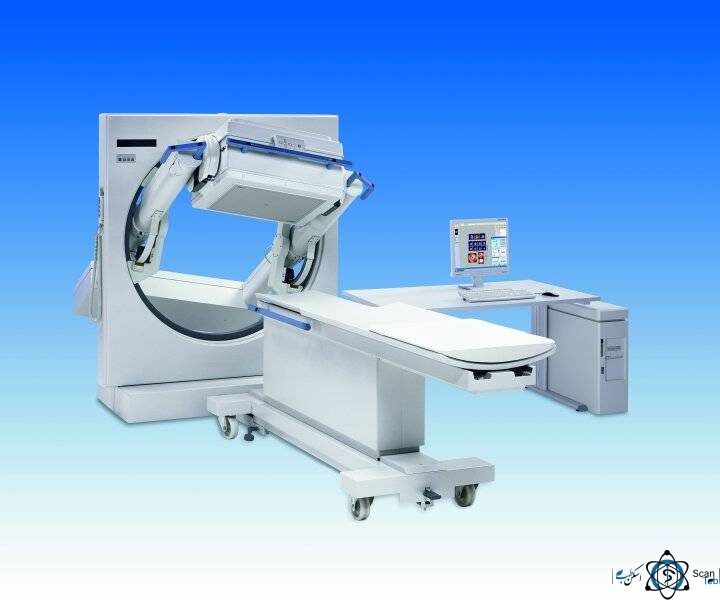

Siemens ( MiE )- DIACAM SCINTRON- Single Head

DIACAM SCINTRON

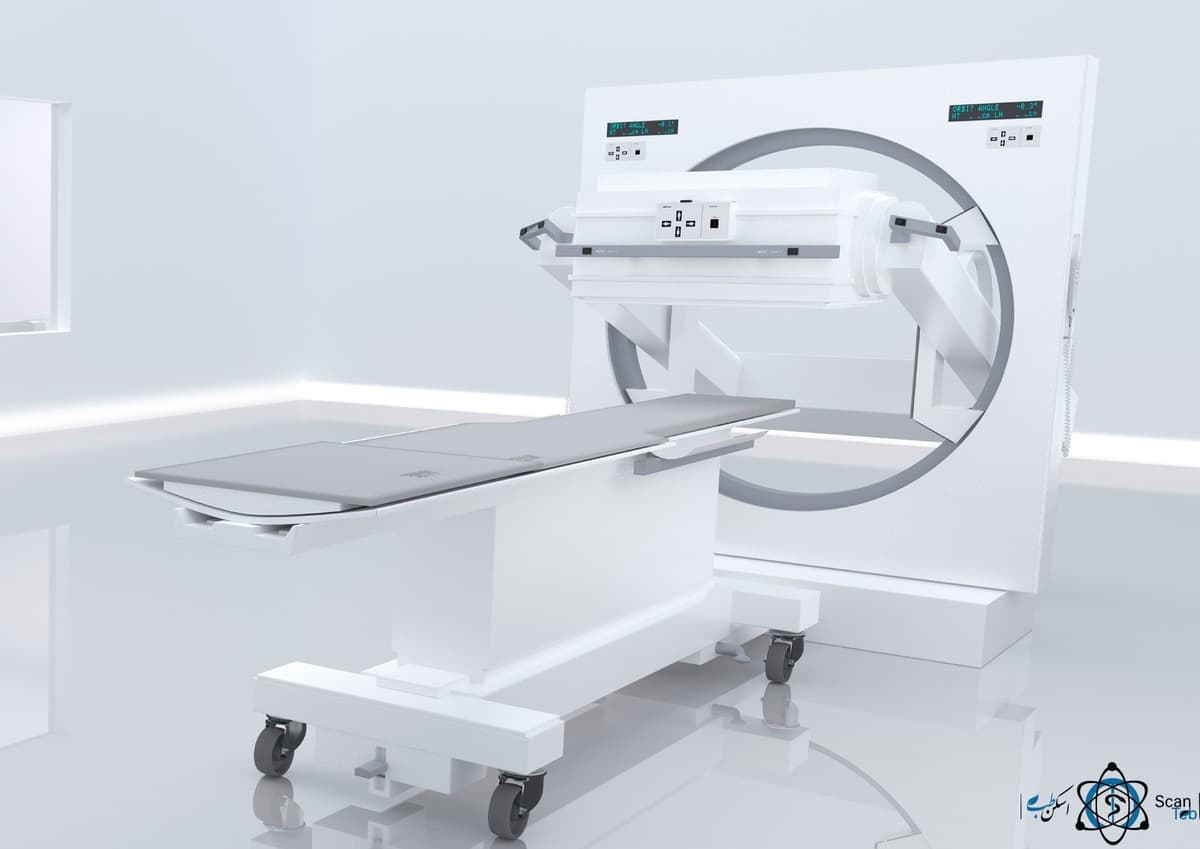

OPEN GANTRY DESIGN

▶ Full range of nuclear medicine studies covered ▶ Detector tilt range 150° ▶ Auto-balance between detector and gantry ensures precise mechanical balance independent of collimator type and weight

DETECTOR

▶ FOV 53,3 cm x 38,7 cm (21” x 15.25”) ▶ 59 PMTs for excellent resolution ▶ Lead shielding for energies up to 511 keV ▶ 3/8˝ NaI(Tl) Scintillation-Crystal ▶ Stackable collimator carts for space-saving storage and easy changing

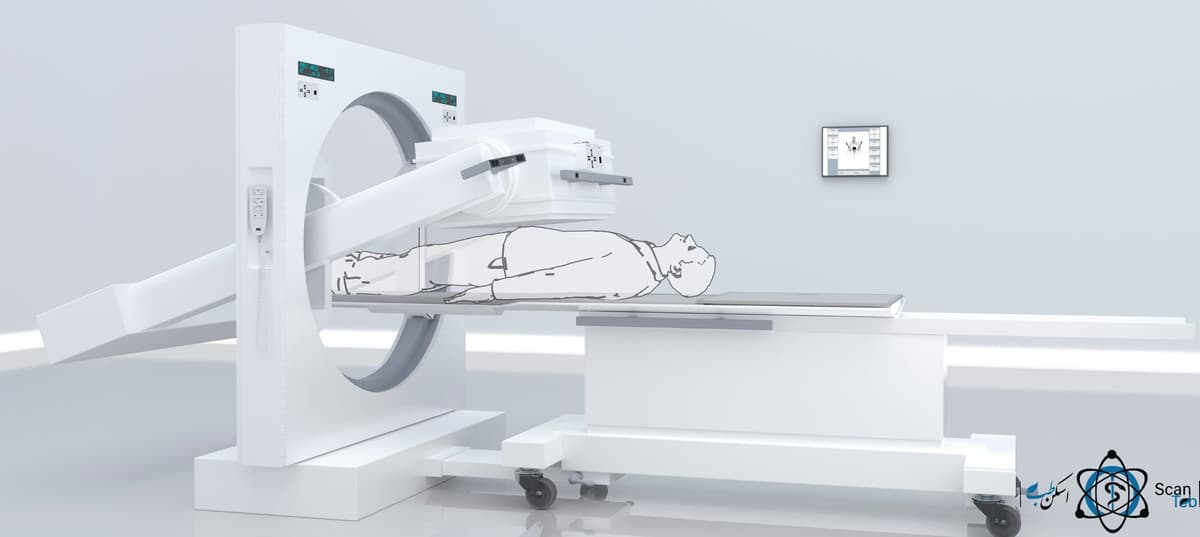

EASY PATIENT HANDLING

▶ Carbon fiber patient pallet for excellent image quality and only 8% attenuation of radiation ▶ Several accessories for optimal patient positioning ▶ Unique gantry design and pivotable patient table permits free accessibility of patients in wheelchairs and gurneys

Detector Detector Type rectangular Field of View (FOV) 53.3 cm x 38.7 cm (21” x 15.25”) Number of PMTs 59 Crystal Thickness 9.5 mm (3/8”) Energy Range up to 511 keV System sensitivity (with LEHR-Collimator) absolute ≥ 210 cpm/μCi (± 10%) Positioning Detector Tilt Range 150° Orbital Rotation Range -540° to +540°   Patient Handling  System (PHS) Pallet material Carbon Fiber Attenuation at 140 keV < 8 % Vertical Motion Range 81 - 107 cm (32” - 42”) Gantry Weight  (without collimator) 1264 kg (2793  lbs.) Patient aperture 76.2 cm (30”) Collimators Low Energy LEHR, LEAP Medium Energy MEGP Pinhole Various inserts available High Energy HEGP Accessories Positioning Support Myocard SPECT Thyroid Positioner Armrests Extension Board  PHS ECG Trigger Additional Phantoms for Quality Control available
