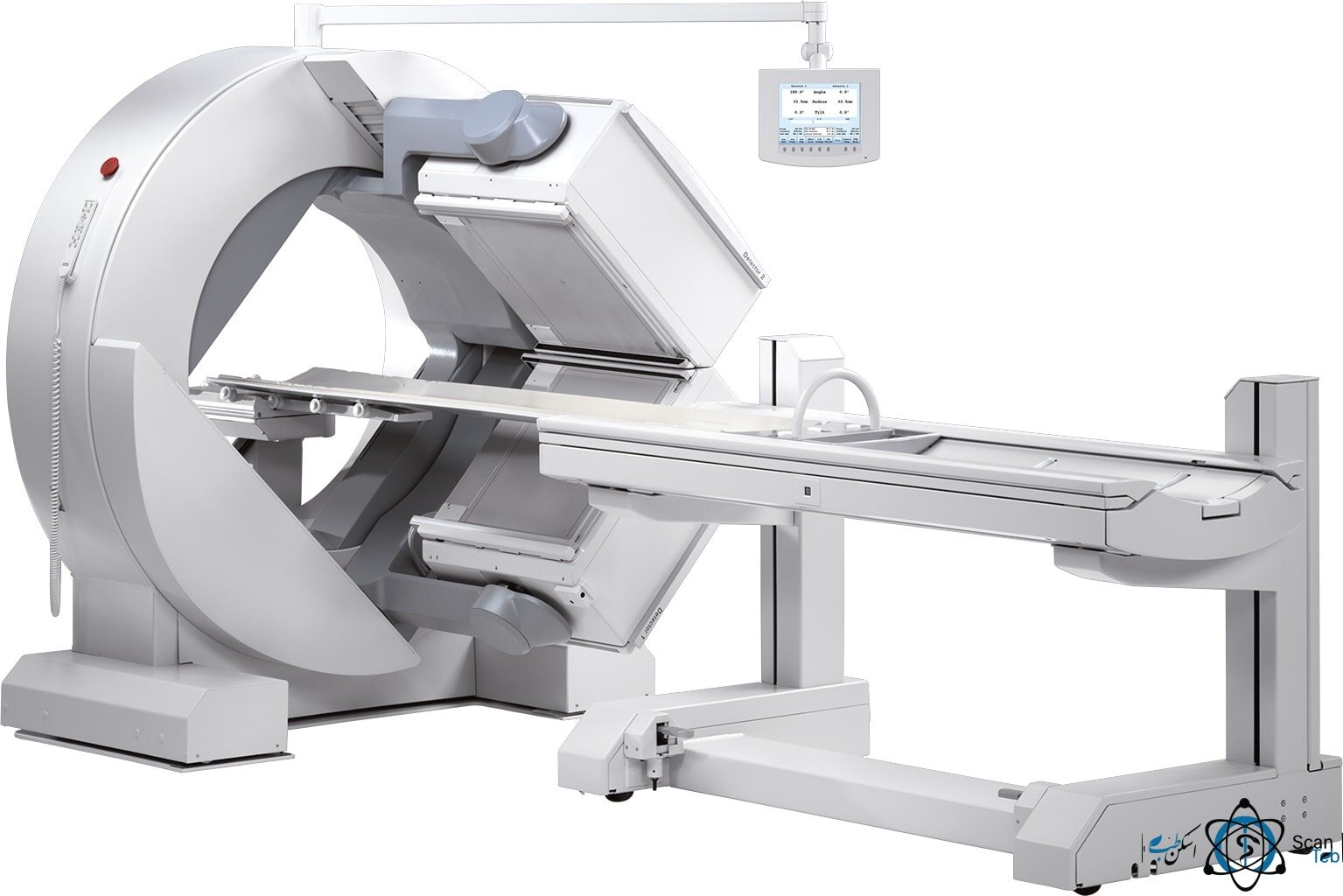

Siemens ( MiE )- ECAM Scintron

ECAM SCINTRON

PATIENT TABLE

▶ Extra low table position (48,3 cm / 19“) for easy access of patients with limited mobility

▶ Integrated armrests (no additional parts) guarantees high patient comfort

▶ Ultra-thin patient pallet (2.5 mm / 0.1“aluminum) for excellent image quality and only 7% attenuation of radiation

OPEN GANTRY DESIGN

▶ Variable angle detector configuration of 90° or 180°

▶ Detector tilt from 20° cranial to 90° caudal

▶ Patient-positioning-monitor (PPM) and remote control enable acquisition start/stop functionality for reliable patient preparation

▶ PPM allows to trigger automatic detector movements for a fast work routine

▶ Single or dual detector systems available

DETECTOR

▶ FOV 53,3 cm x 38,7 cm (21” x 15.25”)

▶ 59 PMTs per detector for excellent resolution

▶ Lead shielding for energies up to 511 keV

▶ 3/8˝ NaI(Tl) Scintillation-Crystal

▶ Average detector distance using body contouring only 1.1 cm (0.45”) for optimal resolution and image quality

Detector Detector Type rectangular Field of View (FOV) 53.3 cm x 38.7 cm (21” x 5.25”) Number of PMTs 59 per Detector Crystal Thickness 9.5 mm (3/8”) Energy Range up to 511 keV System sensitivity (with LEHR-Collimator) absolute ≥ 202 cpm/μCi Positioning Detector Tilt Range caudal 90° / cranial 20° Detector Rotation Range -30° to +440° Average Auto contour Distance 1.1 cm (0.45”) Patient Handling  System Pallet Width Whole Body 64.8 cm (25.5”) (PHS) Pallet Width SPECT 35.6 cm (14”) Maximum Scan Lenght 202 cm (79.5”) Vertical Motion Range 48.3 - 110.5 cm (19” - 43.5”) Gantry Weight  (incl. LEHR-Collimators) Single Detector 1120 kg (2470  lbs) Dual Detector 1580 kg (3485  lbs) Collimators Low Energy LEHR, LEAP Medium Energy MEGP Pinhole Various inserts available High Energy HEGP Accessories Positioning Support Myocard SPECT Brain SPECT ECG Trigger Additional Phantoms for Quality Control available
